All In One Solar LED Street Light,All In One Solar LED Street Light 50W

Certification
Good quality Integrated Solar Street light for sales
Good quality Integrated Solar Street light for sales
I'm Online Chat Now

All In One Solar LED Street Light,All In One Solar LED Street Light 50W

China All In One Solar LED Street Light,All In One Solar LED Street Light 50W supplier
All In One Solar LED Street Light,All In One Solar LED Street Light 50W supplier All In One Solar LED Street Light,All In One Solar LED Street Light 50W supplier All In One Solar LED Street Light,All In One Solar LED Street Light 50W supplier All In One Solar LED Street Light,All In One Solar LED Street Light 50W supplier

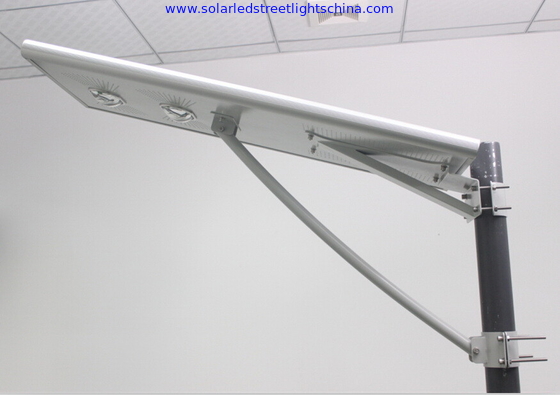

Large Image :  All In One Solar LED Street Light,All In One Solar LED Street Light 50W

Product Details:

Place of Origin: ShenZhen China
Brand Name: TainShou
Certification: CE & RoHS
Model Number: All In One Solar LED Street Light

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: Negotated

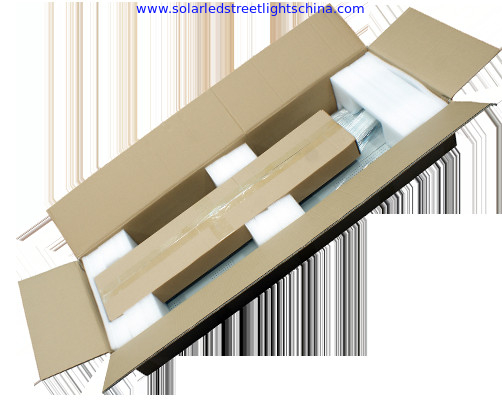

Packaging Details: 1set
Delivery Time: 5~8work days
Payment Terms: 30% payment advance
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Power Supply: Solar Application: Garden
Lampshade Material: Toughened Glass Lighting Bulbs & Tube: Energy Saving

 50W China all in one Solar LED Street Light, all in one Solar LED Street Light factory

Integrated Solar Street Light (50W) Specification:

Specification
Solar panel 18V90W (Sunpower monocrystalline silicon);Life time 25 years
Battery lithium battery 12.8V 42AH; Life time 5 years
Brand of LED chip Cree/ Bridgelux
LED Lamp  Power  12V 50W
Beam angle 120 degree
LED Quantity 2pcs COB or 60 leds
Lamp Luminous Flux(lm) 6000-6600 lm
Color Temperature 2700-7500K
Protection Index IP65
Lifespan >50000hrs
Charge time 7 hours by Sun (with enough strong shine)
Discharge time Full power>10hrs;  Saving mode>24hrs
Installation Height 6-7m
Distance between lights 20-25m
Product Dimension &weight 1080*450*153mm;  22.5kg
Packing Dimension &weight 1180*510*200mm; 26kg
Working Temperature(°C) charging:0°C~+60°C  discharging :-20°C~+60°C   storage:0°C~+45°C
Certification CE Rohs FCC BV
Warranty 2 years



Features:

·         All in one intelligent design.

·         No cable, 100% solar powered

·         Built-in motion sensor

·         Built-in temp sensor

·         30W high lumens LED lamp,110-120lm/w

·         IP65

·         intelligent controller



Smart Integrated Solar Street/Garden light Features:

1) All in one, intelligent integrated design; It integrates the LED lamp, solar panel, lithium battery and controller together.

2) Solar powered, 100% energy saving;

3) Without any cable, easy to install and ship;

4) Built-in infrared sensor, can adjust the light output automatically;

5) Modern portable design can be installed anywhere needed;

6) Compact volume can save freight and installation costs;

7) Rust-proof, dustproof and waterproof;

Benefits of Smart Solar Integrated solar Garden/Street Light

Lower initial cost– It is less expensive to purchase and install a solar powered street light than a traditional street light.And the most more important is that it's Sun light powered, 100% energy saving.

Lower Operation Cost– Without switch box or cable, easy to install and ship.

Lower maintenance cost– The solar panel lifespan is 25 years, and LED lifespan 50,000hrs. Lithium battery is much longer than lead-acid battery that other suppliers mainly use.

Compact Design- Our design and technology implementation have been driven by our desire to eliminate the need for bulky external battery boxes and external solar panels and achieve a FULLY INTEGRATED Solar Powered Street Light. To achieve this, we have designed our system to have maximum light output with minimum power consumption using our proprietary high efficiency solar cells located directly on the light fixture.

Reduced Damage/Theft- By locating the solar technology directly on the light fixture and placing the battery within the light fixture, the risk of damage, theft or tampering is greatly reduced. There are no wires in the street pole, which means that the wire itself (which exists in regular street lights) can’t be stolen and sold for scrap.

Ruggedized Technology– The solar powered street light is deigned based upon our extensive experience of using electrical and electronic equipment in harsh environments, our engineered solutions require less maintenance and reduced parts replacement due to initially incorporating higher quality components.

Insect Swarms– The solar powered street light uses LED lighting which does not produce Infrared light, and therefore will not attract insects. (No more moths and other flying insects swarming around the light.)

Improved Safety– The solar powered street light does not require connection to an electrical grid. It is safer and easier to install. In the event of a power outage, the light remains on. This reduces the chance of car accidents and the constant light deters theft/vandalism from nearby businesses.

Anywhere/anytime – The solar powered street light can be used in any location. Since no electrical grid is required, it can be installed on buildings, in parking lots, in remote locations simply by hanging it on a pole.

Faster Installation– Since you don’t need to trench power lines to the pole, run wires up the pole, connect wires to an electrical grid, or hard wire the street light, the installation is significantly faster. In fact, it is so easy, it can be installed on the pole before it’s erected, and thereby reducing a step completely from the process.



Difference models All in one integrated solar street light: 5W, 10W, 12W, 15W, 20W, 25W, 30W, 40W, 50W, 60W

12W All-in-one solar LED Street Light 12W all in one integrated solar led street lithgs

·         12W LED light module

·         25W monocrystal solar panel

·         150WH LiFePO4 Lithium Battery

·         MPPT Controller with motion sensor

·         All-in-one compact integrated design

·         Read More



15W All-in-one solar LED Street Light 15 all-in-one integrated solar led street lights

·         15W LED light module

·         35W monocrystal solar panel

·         180WH LiFePO4 Lithium Battery

·         MPPT Controller with motion sensor

·         All-in-one compact integrated design

·         Read More

20 W All-in-one solar LED Street Light

20w all in one integrated solar led street lights

·         20W LED light module

·         45W monocrystal solar panel

·         230WH LiFePO4 Lithium Battery

·         MPPT Controller with motion sensor

·         All-in-one compact integrated design

·         Read More





25W All-in-one solar LED Street Light

25W All in one solar led street lights

·         25W LED light module

·         50W monocrystal solar panel

·         268WH LiFePO4 Lithium Battery

·         MPPT Controller with motion sensor

·         All-in-one compact integrated design

·         Read More

30W All-in-one solar LED Street Light

30W All-in-one solar LED Street Light

·         30W LED light module

·         60W monocrystal solar panel

·         307WH LiFePO4 Lithium Battery

·         MPPT Controller with motion sensor

·         All-in-one compact integrated design

·         Read More

40W All-in-one solar LED Street Light



40W All-in-one solar LED Street Light

·         40W LED light module

·         80W monocrystal solar panel

·         345WH LiFePO4 Lithium Battery

·         MPPT Controller with motion sensor

·         All-in-one compact integrated design

·         Read More



50W All-in-one solar LED Street Light

50W Integrated Solar LED Street Light, LED street light manufacturer in china (2)

·         50W LED light module

·         90W monocrystal solar panel

·         450WH LiFePO4 Lithium Battery

·         MPPT Controller with motion sensor

·         All-in-one compact design

·         Read More

60W All-in-one solar LED Street Light

60W All-in-one solar LED Street Light

·         60W LED light module

·         100W monocrystal solar panel

·         614WH LiFePO4 Lithium Battery

·         MPPT Controller with motion sensor

·         All-in-one compact design

·         Read More





From 2010 ,Our company strart design All in Solar Led Street Lights.

We Focus on this one products, take our effort to R&D and testing. To make sure the good Quality.

We are professiona to make this All in one Solar Led Street Lights.

all in one Solar Led Street Lights, enough for the use environment for the outdoor lights/garden lights.

That means 5-15W all in one Solar Led Street Lights also can be used as the outdoor lighting / garden lighting

For the Street Lights, use /application environment is the first consideration,and then price

Product Details:

All In One Solar LED Street Light,All In One Solar LED Street Light 50W



All in one Smart Integrated Solar Stree t/ Garden lights Project Pictures:

Smart Integrated Solar Street/Garden light Features:



FAQ



1.Can i light up with 12hours ?



Sure ,it can light about 12hours when it with 100% power,It also can light up>12hours when it is save mode.



2.Can i light up from PM6:00-AM6:00 ,another time is dark ?



Sure,we have  time control method ,if you want it light during PM6:00-AM6:00,you can set up it in advance.



3.Can the lamps turn on /off automatically ?



Sure,when at night,it light up automatically;when during the day,it will turn off automatically.



4. how long lifespan of solar panel ?



Under normal circumstances, the solar panels can be used for more than 10 years, rechargeable batteries 2 - 3 yearsor replaced once, LED light-emitting diodes up to 10 million work hours have incomparable advantages over traditional lighting.



5. After I bought lamp , need additional assembly it ?



No, the flat can tighten the screws, the whole installation time is not more than 3 minutes.



6.Solar power street lights are more expensive, what are the advantages?



Answer: green energy, environmental pollution; no pull wire, safe, reliable, easy to move, easy to place; night lit type canwork 8-10h,body sensors solar light rainy days 3-4 days of continuous work; life Long, low cost, no pay electricity bills, one-time investment .



7.What are the influencing factors the efficiency of the solar power system?



solar power system power generation efficiency impact of many factors: the efficiency of the various components of the system,weather conditions, system orientation, system installation inclination. Any point of generation capacity there is a great difference



8. What should I pay attention to the first time?



The first time, In the sun to accept direct sunlight 6-7 hours  to activate the battery capacity and improve performance



9.What's the warranty ? Once the lamp broken,can i get any service from you ?



Our solar power street light standard warranty is 3 years,when the lamp broken(unartificial) during the warranty period,we will send whole lamp or replacement for free ,but the buyer carry the freight.



10.Can i have a sample for test ?



Sure,our MOQ is 1pc,you can buy 1-5units solar power street light as samples to test ,but sample is not free.



11.Are you manufacturer or trade company ?



We are professional manufacturer of led street light for almost 8years.
